ScanSnap SV600
Overview

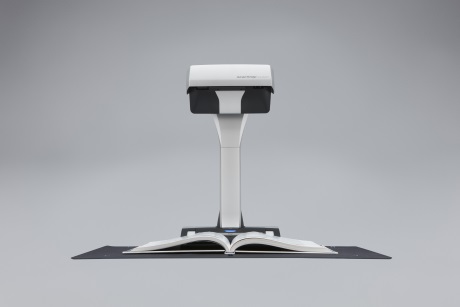

How it works
The ScanSnap SV600 is an overhead style contactless scanner that provides a new perspective on document scanning. Unlike the typical scanner, you can easily scan newspapers, magazines, books or documents of up to 30mm thick directly with the overhead LED, without cutting or damaging them.
Overhead scanner with a new perspective on scanning
- A3 document scanning
- Multiple document scanning
- VI Technology for steady images
- Auto Book Correction and Point Retouch function to optimize scanned images
- Page Turning Detection function and Time Mode for smooth book scanning
- Compatible with PC and Mac
- Best experience with ScanSnap Home
Features
Easy scanning for various documents
The ScanSnap SV600 is capable of scanning a wide range of documents from books, thick documents, drawings/artwork, A3 size documents to business cards, making overhead scanning simple and providing you with limitless possibilities.

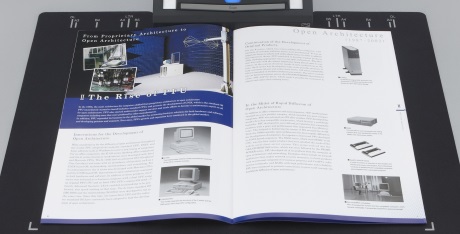

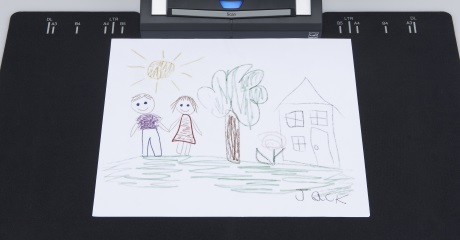

Scan important documents without any damage
You can scan a document larger than A4 size by simply positioning it on the A3 scan mat and pressing the scan button. Because there is no need to cut documents or feed each document through the rollers, your important and delicate documents such as valuable books, hand-painted pictures and photos can be scanned without getting damaged.

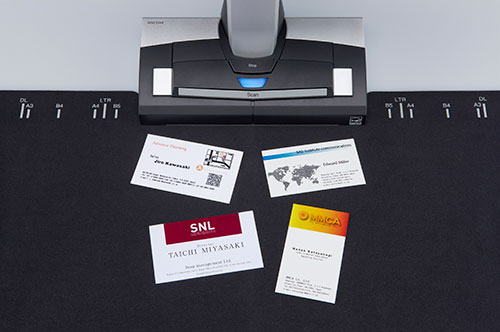

Digitize multiple documents at once
The Multi Document Detection function enables you to scan multiple business cards, photos, newspaper clippings or other documents in one scan, automatically cropping and rotating the scanned images. *Up to 10 documents can be scanned at one time.

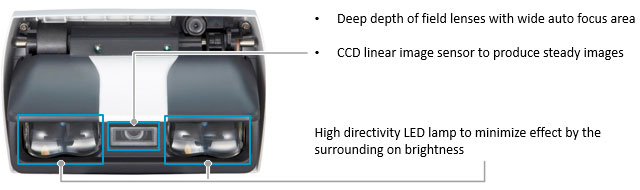

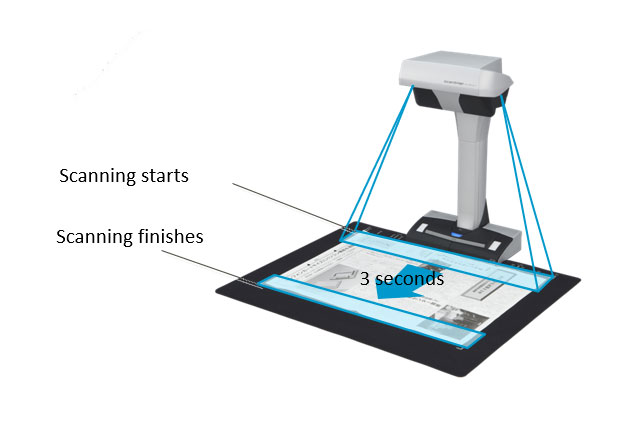

VI Technology with convenience and quality
Combining high quality CCD optics and advanced LED illumination, the scanner produces a steady image of the whole document, minimizing the unevenness or blurriness even when scanning from a distance.
Efficient digital archiving of original digital books
The ScanSnap SV600 is your ultimate partner to scan books or magazines efficiently, providing various useful functions specially designed for book scanning.

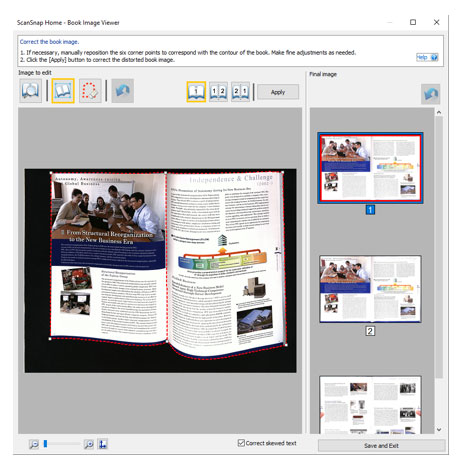

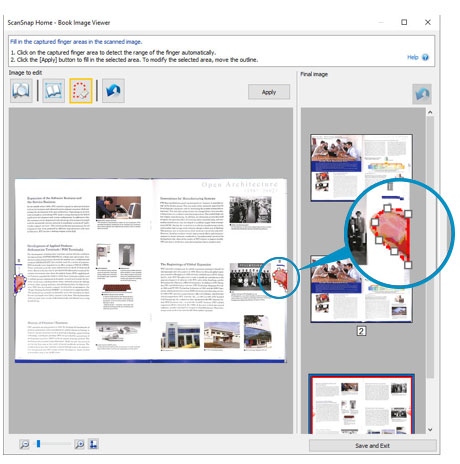

Various image corrections to obtain optimal images
You do not need to worry about any distortions that are caused by the curve of an opened book or magazine, with the Auto Book Correction that automatically flattens and corrects the curve distortion. When needing to hold a document to scan, fingers captured during the scanning can be removed by using the Point Retouch function.

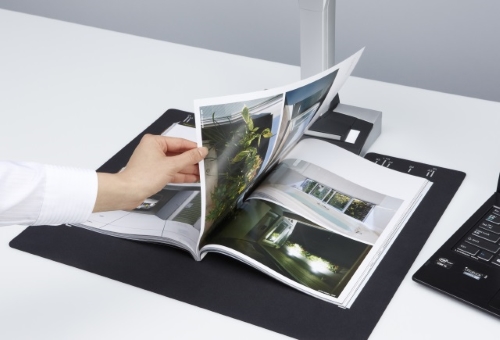

Complete scanning smoothly with helpful functions
With the Page Turning Detection function, the scanner detects when a page is turned and automatically begins scanning. Another function, the Time Mode, allows you to set a fixed time interval so that the scanner can scan in real time with you. These functions eliminate the hassle of pressing the scan button every time you turn a page and start scanning.

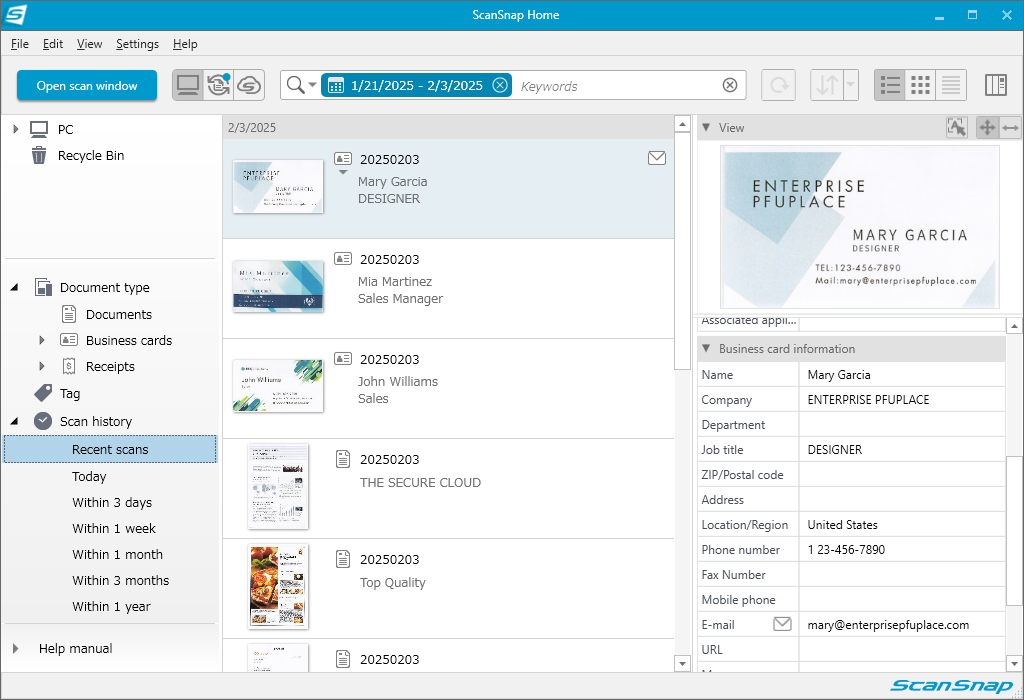

Best experience with ScanSnap Home
ScanSnap Home (for PC) combines all your favorite functions into one and is the ultimate platform to utilize scanned data in various ways. Easily manage, edit and utilize data from documents, business cards, receipts and photos with the software. You can scan large volumes of various types of documents from color photos to double-sided landscape documents with a host of intelligent automatic image processing functions.
Specifications
| Product Name | ScanSnap SV600 |
| Scanner Type | Overhead, Simplex |
| Scanning Speed*1 (A3 Landscape) - Auto mode*2 | 3 seconds / page |
| Scanning Speed*1 (A3 Landscape) - Normal mode | 3 seconds / page*3 (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) |
| Scanning Speed*1 (A3 Landscape) - Better mode | 3 seconds / page*3 (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) |
| Scanning Speed*1 (A3 Landscape) - Best mode | 3 seconds / page*3 (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) |
| Scanning Speed*1 (A3 Landscape) - Excellent mode | 3 seconds / page*3(Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) |
| Scanning Color Mode | Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection) |
| Image Sensor | Color CCD x 1 |
| Light Source | (White LED + Lens illumination) x 2 |
| Optical Resolution | 285 to 218 dpi (Horizontal scanning), 283 to 152 dpi (Vertical scanning)*4 |
| Document Size - Maximum | 432 x 300 mm (17.0 x 11.8 in.) |
| Document Size - Minimum | 25.4 x 25.4 mm (1 x 1 in.)*5 |
| Paper Weight (Thickness) | 30 mm (1.18 in.) or less |
| Interface*6 | USB2.0 / USB1.1 (Connector Type: Type-B) |
| Power Requirements | AC 100 to 240 V, 50/60 Hz |
| Power Consumption - Operating Mode | 20 W or less |
| Power Consumption - Sleep Mode | 2.6 W or less |
| Power Consumption - Auto Standby (Off) Mode | 0.4 W or less |
| Operating Environment - Temperature | 5 to 35 °C (41 to 95 °F) |
| Operating Environment - Relative Humidity | 20 to 80% (Non-condensing) |
| Environmental Compliance | ENERGY STAR, RoHS |
| Dimensions (W x D x H) | 210 x 156 x 383 mm (8.27 × 6.14 × 15.08 in.) |
| Weight | 3 kg (6.62 lb) |
| Driver | ScanSnap specific driver Windows: Does not support TWAIN / ISIS™ macOS: Does not support TWAIN |
| Software*7 | ScanSnap Home (for PC) (All-in-one document management software/driver) Kofax Power PDF Standard (Windows) Kofax Power PDF Standard for Mac (Mac) ABBYY FineReader for ScanSnap™ |
| Image Processing Functions | Deskew by text on document, Automatic size detection, Automatic rotation, Automatic color detection, Book image correction*8, Multiple document detection*9 |
| Included Items | AC cable, AC adapter, USB cable, Safety Precautions, Background Pad, Extenders (x2) |
*1 Scanning speeds may vary due to the system environment. The values shown are the results of the evaluation under the following environment:
- • Windows 11 / CPU: Intel Core™ i3-13100, up to 4.5GHz / Memory: 8GB / Storage: SSD,
- • macOS Sonoma 14 / CPU: Apple M2 chip / Memory: 8GB / Storage: SSD / Mac Mini (2023).
*2 "Better mode" or "Best mode". Switch between "Better mode" and "Best mode" depends on the length of the document, A4 (portrait, 200 dpi), A6 size or below (300 dpi).
*3 Time between actual start of scanning (scanning pad) and finish scanning.
*4 Optical resolution differs due to different scanning angle on the same document.
*5 For documents of thickness over 5 mm, the maximum document size is 400 x 300 mm.
*6 Compatible with USB 3.0 port but connection will run as USB 2.0 speed.
*7 Installation and updates require Internet availability. Software/driver updates to the latest versions are recommended.
*8 Automatically correct distortion caused by the curve of an opened book or magazine.
*9 Automatically crop several documents in one scan.
System Requirements for PC
| Compatible Operating Systems*1 | Windows 11 / 10 (32-bit / 64-bit) | ||||||
| Driver / Applications*2 |
| ||||||
| Hardware Requirements*3 |
|
1. Operate Windows in desktop mode. ScanSnap scanners do not run with Windows 10 Enterprise 2015 LTSB and Windows 11 and 10 ARM-based PCs such as Surface Pro X (Microsoft).
2. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support Site for the latest support information.
3. The ScanSnap device may not work if the connected computer does not meet these requirements.
4. Installation requires a computer and Internet. Please visit the ScanSnap Support Site for download information.
5. Please refer to the included license certificate to download the software.
6. Scanning speeds may vary due to the system environment.
7. .NET Framework 4.8 or later must be installed. If it is not installed, it is installed with ScanSnap Home. Up to 4.5 GB of disk space is required for the installation.
*The system requirements may change depending on the support policies of the above system and third-party software.
System Requirements for Mac
| Compatible Operating Systems | macOS Monterey 12 or later | ||||||
| Driver / Applications*1 |
| ||||||
| Hardware Requirements*2 |
|
1. Operating systems listed in this table are the only ones supported. Please refer to the ScanSnap Support Site for the latest information.
2. The ScanSnap device may not work if the connected computer does not meet these requirements.
3. Installation requires a computer and Internet. Please visit the ScanSnap Support Site for download information.
4. Please refer to the included license certificate to download the software.
5. Scanning speeds may vary due to the system environment.
*The system requirements may change depending on the support policies of the above system and third-party software.
Accessories
Consumables
| Part Number | Description | |
|---|---|---|
| Cleaner F1 | PA03950-0352 | 100 ml bottleFor cleaning the glass, camera, lamp etc. of the scanning head |
| Cleaning Wipes | PA03950-0419 | 24 packetsFor cleaning the glass, camera, lamp etc. of the scanning head |
Options
| Part Number | Description | |
|---|---|---|
| Background Pad | PA03641-0052 | Set in front of the scanner when scanning.*One pad is bundled with the scanner. |
